YauScape

Documentation for YauScape.

Examples

using YauScape

calabi_yau(3, π/2)
savefig("calabi_yau.png")

Parameters

n::Int64: Determines the level of complexity in the Calabi-Yau manifold, influencing the number of patches used in its construction. Higher values of n result in more intricate surfaces.
α::Float64: Specifies the rotation angle (in radians) of the 3D plot around the z-axis. This parameter allows you to view the Calabi-Yau manifold from different perspectives.
grid_res::Int64: Controls the resolution of the grid used to generate the surface. A higher grid_res value leads to a smoother and more detailed surface, but increases computation time.
color_palette::Symbol: Sets the color palette used for coloring the surface patches. It accepts any valid Plots.jl color palette symbol (e.g., :rainbow, :viridis, :blues).
color::Symbol or nothing: If provided with a color symbol, it overrides the color_palette and applies a uniform color to all surface patches. If set to nothing, the color_palette is used for coloring.

using YauScape

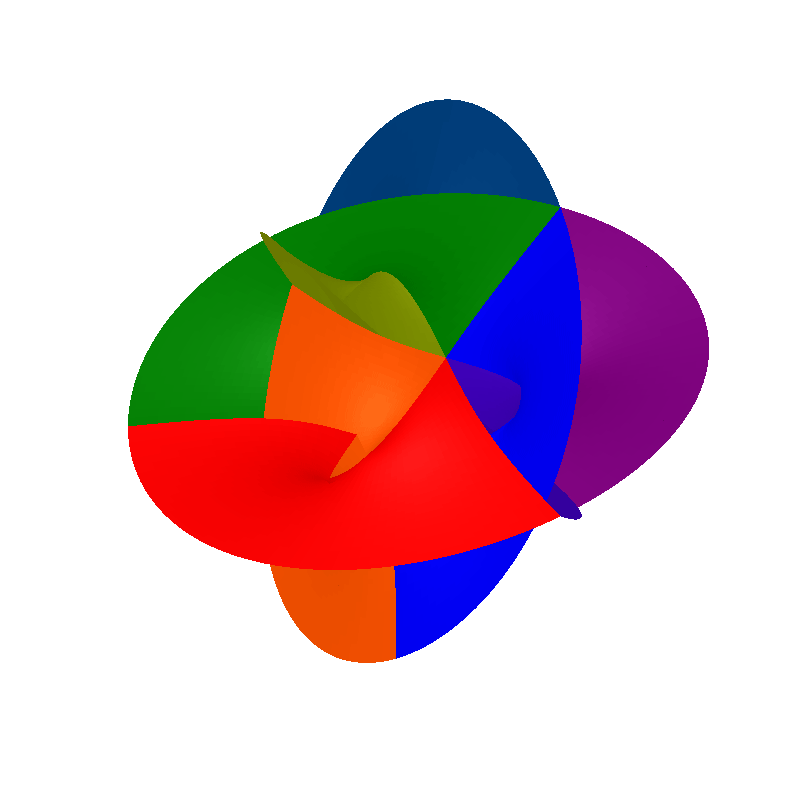

anim = calabi_yau_anim(2)
gif(anim, "calabi_yau.gif", fps=15)

Parameters

n::Int64: Similar to the calabi_yau function, determines the complexity of the Calabi-Yau manifold and affects the intricacy of the shape in the animation.
anim_res::Int64: Specifies the number of frames in the animation. Higher values result in smoother animations but longer generation times.
color_palette::Symbol: Same as in calabi_yau, sets the color palette for surface patch coloring, used throughout the animation.
